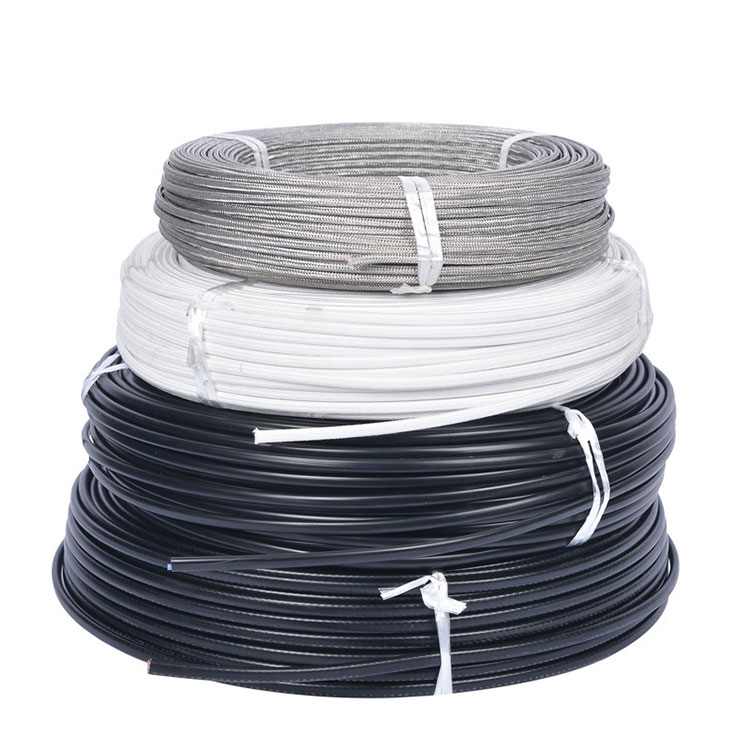

Why Is Thermocouple Compensation Wire Essential for Accurate Temperature Measurement?

Thermocouple systems are fundamental for precise temperature monitoring in various industrial and laboratory applications. One critical component often overlooked is the Thermocouple Compensation Wire. Without proper compensation, readings can be inaccurate, leading to potential equipment damage, product quality issues, and operational inefficiencies. In this comprehensive guide, we will explore what thermocouple compensation wire is, why it is necessary, its types, installation methods, and how to select the best solution for your needs.

Table of Contents

1. What Is Thermocouple Compensation Wire?
2. Why Do You Need Thermocouple Compensation Wire?
3. Types of Thermocouple Compensation Wire
4. Key Applications and Industries
5. How to Install and Maintain Compensation Wire
6. Benefits of High-Quality Compensation Wire
7. Comparison of Common Thermocouple Wire Types
8. Frequently Asked Questions (FAQ)
9. Conclusion

1. What Is Thermocouple Compensation Wire?

Thermocouple compensation wire, also known as extension wire, is specifically designed to connect thermocouples to measurement devices while preserving the accuracy of temperature readings. Unlike standard copper wires, compensation wire matches the thermoelectric properties of the thermocouple material, reducing measurement errors caused by temperature variations along the wire.

For instance, a Type K thermocouple (Chromel-Alumel) requires K-type compensation wire to maintain accuracy between the sensor and the instrumentation. This ensures that the cold junction compensation (CJC) is effective and the voltage readings are correctly interpreted.

2. Why Do You Need Thermocouple Compensation Wire?

• Accuracy: Thermocouple signals are in millivolts and very sensitive to changes in wire composition and temperature. Compensation wire maintains proper voltage correlation.
• Temperature Span: It allows the sensor to extend over longer distances without introducing errors.
• Durability: Proper compensation wire is resistant to environmental factors like moisture, vibration, and chemicals.
• Cost-Efficiency: Using the correct compensation wire reduces recalibration frequency and minimizes operational downtime.

3. Types of Thermocouple Compensation Wire

Choosing the correct type of compensation wire is crucial. Here are the most common types:

4. Key Applications and Industries

Thermocouple compensation wire is widely used in various sectors where temperature accuracy is critical:

• Industrial furnaces and heat treatment processes
• Food processing and packaging
• HVAC and refrigeration systems
• Chemical and pharmaceutical manufacturing
• Automotive and aerospace testing
• Laboratory and research applications

Ningbo Paidu Industrial Co., Ltd. provides high-quality compensation wires designed for these industries, ensuring consistent performance even in demanding conditions.

5. How to Install and Maintain Compensation Wire

Proper installation and maintenance are key to long-term reliability:

1. Measure Distance Accurately: Determine the exact length required to connect your thermocouple to the instrument, avoiding excess wire.
2. Match the Type: Always select compensation wire matching the thermocouple type (e.g., K, J, T).
3. Minimize Electrical Noise: Route wires away from motors, transformers, or high-current cables to prevent interference.
4. Secure and Protect: Use cable trays or conduits and avoid sharp bends that may damage the wire.
5. Regular Inspection: Periodically check for signs of corrosion, insulation wear, or mechanical damage.

6. Benefits of High-Quality Compensation Wire

Investing in premium thermocouple compensation wire offers multiple advantages:

• Accurate temperature measurement across long distances
• Reduced calibration errors and downtime
• Improved system reliability and lifespan
• Enhanced safety in critical industrial environments
• Compliance with international standards

7. Comparison of Common Thermocouple Wire Types

8. Frequently Asked Questions (FAQ)

Q1: Can I use standard copper wire instead of compensation wire?

A1: No. Using copper or any unmatched wire can introduce significant measurement errors due to differences in thermoelectric properties.

Q2: How long can compensation wire run without affecting accuracy?

A2: High-quality compensation wire can extend several hundred meters, but it’s crucial to use the correct type and route it carefully to avoid interference.

Q3: How do I identify the correct compensation wire type?

A3: Check the thermocouple type used (K, J, T, E, etc.) and match it to the corresponding compensation wire from a trusted supplier like Ningbo Paidu Industrial Co., Ltd.

Q4: Are there special considerations for harsh environments?

A4: Yes, wires may need extra insulation, chemical resistance, or braided shielding to withstand industrial conditions.

Q5: How often should compensation wires be replaced?

A5: It depends on the environment, but regular inspection for wear, corrosion, or insulation damage is recommended. Replace immediately if any faults are detected.

9. Conclusion

Thermocouple compensation wire is an indispensable component for accurate temperature measurement across diverse industries. Selecting the right type, ensuring proper installation, and maintaining the wires effectively are essential steps for operational efficiency, safety, and reliability. With high-quality products from Ningbo Paidu Industrial Co., Ltd., businesses can achieve precise measurements, minimize downtime, and enhance overall performance. For more information about our compensation wire solutions and customized services, contact us today and speak with our experts.
