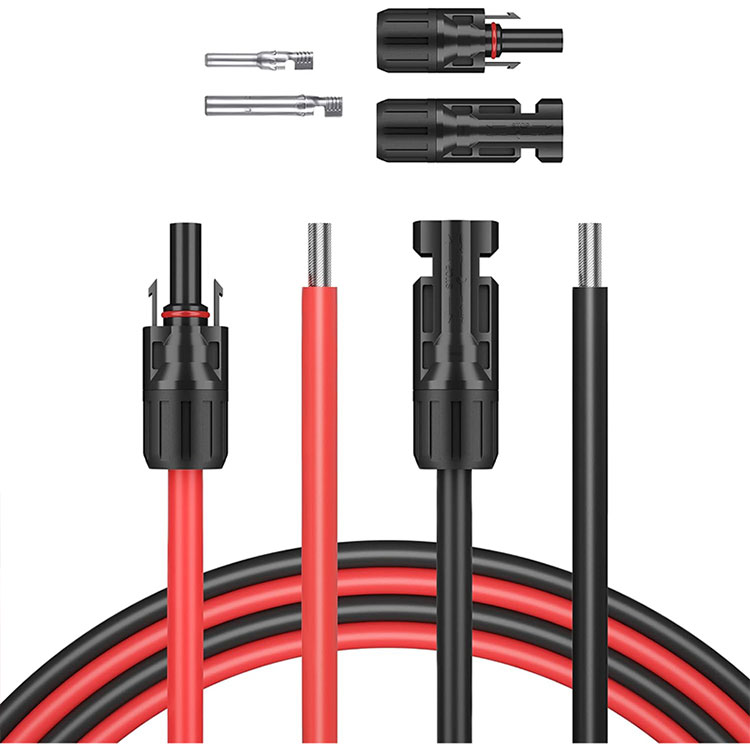

Vibration Resistant 10 Gauge Short Solar Extension Cable

Engineered and manufactured under the quality system of Paidu Group Limited, the Vibration Resistant 10 Gauge Short Solar Extension Cable Exporter is purpose-built for photovoltaic applications operating in environments with persistent mechanical vibration, including RV rooftop systems, marine solar arrays, and mobile off-grid energy platforms.

Traditional solar extension cables often experience performance degradation when subjected to long-term oscillation, where repeated micro-bending leads to conductor fatigue and connector instability. This design addresses those failure mechanisms through a combined structural approach of high-strand copper architecture and mechanically stabilized connector retention.

Structural Redesign for Vibration Stability

Instead of relying on conventional rigid copper cores, this cable integrates:

- Ultra-fine multi-strand tinned copper conductor for enhanced flex endurance
- Distributed stress absorption across multiple conductive paths
- Anti-oxidation tinning layer to protect micro-strand interfaces
- Improved conductivity retention under repeated motion cycles

This structure reduces the probability of internal strand fracture caused by continuous vibration stress.

Connector Locking Mechanism for Motion Control

A key engineering upgrade lies in the connector interface system:

- Integrated locking clip prevents accidental disengagement
- Reinforced mating geometry stabilizes contact pressure
- Anti-rotation housing design resists loosening under oscillation
- Electrical continuity maintained even under dynamic mechanical load

This ensures the system remains electrically stable during road travel, wave impact, or structural vibration.

Anti-Fatigue Material System

The insulation layer is designed to act as a mechanical buffer rather than a passive cover:

- High-flex polymer insulation (TPE / modified XLPO class)
- Elastic deformation capability under repeated bending cycles
- Crack-resistant molecular structure for long service life
- Thermal stability under outdoor PV temperature fluctuations

This combination allows the cable to absorb vibration energy instead of transferring it directly to the copper core.

Application-Oriented Engineering Focus

The Vibration Resistant 10 Gauge Short Solar Extension Cable is optimized for:

- RV solar charging systems with constant road vibration
- Marine photovoltaic setups exposed to wave motion
- Portable off-grid energy systems requiring frequent relocation
- Mobile monitoring and temporary power deployment units

Its short-length configuration further reduces cable swing amplitude, minimizing mechanical fatigue points.

Electrical Stability Under Dynamic Conditions

Despite its mechanical reinforcement design, electrical performance remains optimized:

- Low-resistance 10AWG conductor minimizes voltage drop
- Stable current transmission under movement conditions
- Reduced thermal buildup at connection interfaces
- Consistent output efficiency for PV charging systems

This ensures that vibration resistance does not compromise energy transfer efficiency.

Field Termination Guide for the Bare End

Stripped length: 0.6 inches (15mm) – fits most Wago/Phoenix Contact spring terminals.

Recommended crimp terminals: Use tinned copper ring terminals for battery/controller studs, or ferrules for screw-clamp combiner boxes.

Torque spec: Tighten terminals to 2.2 Nm (20 in-lbs) – do not over-torque to avoid strand breakage.

Heat shrink protection: We recommend applying adhesive-lined heat shrink over the crimp barrel for waterproofing in outdoor combiner boxes.

Reliability Validation Process

Factory testing includes:

- Conductor resistance verification
- Insulation dielectric strength testing
- Connector locking force evaluation
- Vibration simulation endurance checks
- Thermal cycling stability assessment

These processes of Vibration Resistant 10 Gauge Short Solar Extension Cable ensure consistent performance in real-world high-shock PV environments.
