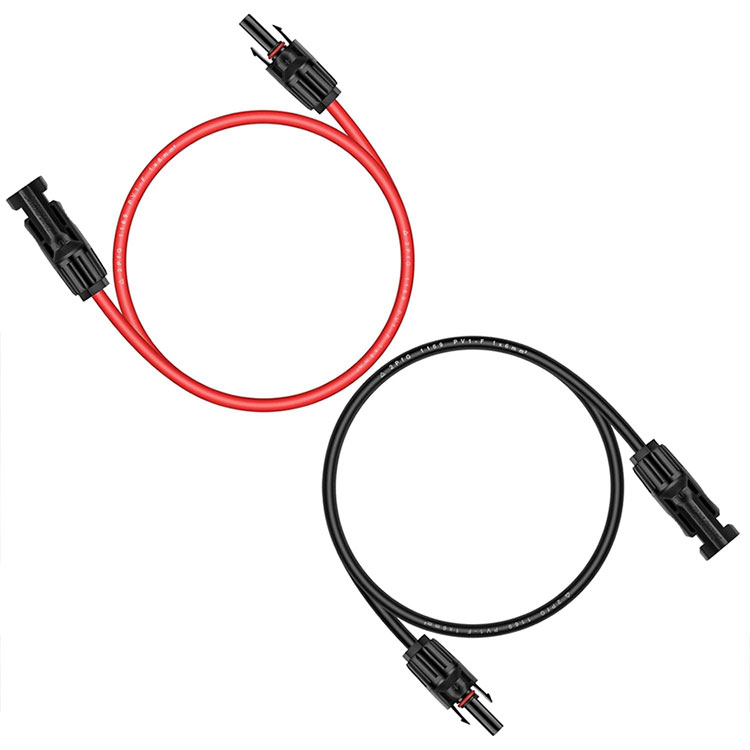

UV Resistant Weatherproof 3 Foot 10AWG Photovoltaic Wire

As a industrial exporter, Paido manufactures the UV Resistant Weatherproof 3 Foot 10AWG Photovoltaic Wire designed specifically for rugged, long-term outdoor solar applications.

Molecular-Level UV Protection with Premium XLPO Insulation

The primary cause of outdoor solar cable failure is the degradation of the insulation jacket under relentless solar radiation. Standard PVC jackets brittle, crack, and flake over time when exposed to sunlight.

The 3 Foot 10AWG Photovoltaic Wire mitigates this risk by utilizing an advanced Electron-Beam Cross-linked Polyolefin (XLPO) insulation jacket. The cross-linking manufacturing process transforms the linear molecular structure of the polyolefin into a highly dense, three-dimensional network. This robust molecular arrangement yields superior environmental benefits:

• 720-Hour UV Resistance Certified: The XLPO jacket successfully passes rigorous 720-hour accelerated weathering and UV resistance testing, showing zero cracking or mechanical degradation.

• Thermal Stability: The cross-linked material does not melt or deform under extreme operational temperatures, retaining its structural integrity in desert heat and freezing alpine conditions.

• Chemical and Environmental Stress Crack Resistance: Protects the internal pure copper conductors from environmental pollutants, ozone, and acid rain.

IP68 Rated Complete Submersion Waterproofing

Moisture ingress is the enemy of electrical continuity, leading to corrosion, voltage leakage, and systemic short circuits. Our engineered cable system provides absolute sealing against harsh outdoor environments.

The cable assembly—including the heavy-duty wire jacket and the pre-installed solar connectors—is rated to IP68 waterproof and dustproof standards. This ensures that the UV Resistant Weatherproof 3 Foot 10AWG Photovoltaic Wire remains completely impervious to water penetration, even under prolonged high-pressure water washdowns or temporary submersion. It is highly optimized for deployment in high-humidity areas, including coastal regions with salt-mist exposure, tropical rainforests, and high-altitude mist zones.

Technical Specifications and Material Properties

This professional-grade cable is built to exacting global standards to ensure seamless integration into commercial, industrial, and residential B2B solar projects.

Factory-Direct Quality Testing Assurance

Paido operates an expansive 18,000 square meter standardized industrial plant equipped with advanced testing structures to guarantee flawless field performance. Every production lot of the UV Resistant Weatherproof 3 Foot 10AWG Photovoltaic Wire undergoes strict inspection protocols:

• Partial Discharge Testing: Conducted within our specialized 33m x 30m x 23m steel shielding hall (shielding efficiency > 120dB), checking for micro-voids or defects within the XLPO insulation before shipping.

• Conductor Resistance Metrology: Verified using high-precision DC resistance testers to guarantee that the 10AWG pure copper core delivers minimum electrical resistance and maximum power output.

• International Compliance: Manufactured under strict compliance with ISO9001:9002 quality systems, carrying valid CCC, CE, and TUV certificates for global market access.

How Does This Photovoltaic Wire Prevent System Power Loss?

Minimizing Drop Across Short-Run Links

Even within a short 3-foot run, sub-par cabling can introduce unnecessary electrical resistance between your solar panels and the solar charge controller. The charge controller serves as the voltage-regulation heart of the entire photovoltaic array.

By utilizing thick, high-purity 10AWG copper conductors, this cable minimizes internal resistance. This architectural choice limits $I^2R$ power loss to negligible levels. It ensures that the maximum amount of generated electrical energy is successfully transferred from the PV modules into the controller terminals, accelerating battery charging cycles and maximizing total system efficiency.

Stable Snap-In Connection Security

Loose or weather-degraded connections cause arcing and sudden voltage drops. Our wire features a stable, integrated self-locking mating mechanism on the connectors.

The stable locking mechanism allows for effortless tool-free connection and disconnection while maintaining a tight, vibration-proof hold once locked. The internal seals prevent moisture, dust, and corrosive airborne salts from compromising the copper contact points, preserving low contact resistance for decades of continuous outdoor operation.

Frequently Asked Questions

What makes XLPO insulation superior to standard PVC for outdoor solar installations?

Standard PVC insulation degrades quickly under continuous outdoor exposure, as ultraviolet (UV) radiation breaks down its polymer chains, causing the cable to crack, stiffen, and fail. The advanced XLPO (Cross-linked Polyolefin) insulation used in the UV Resistant Weatherproof 3 Foot 10AWG Photovoltaic Wire undergoes an electron-beam cross-linking process. This alters the molecular structure into a tight three-dimensional matrix, giving it excellent resistance to high UV exposure, superior thermal stability up to high operating temperatures, and exceptional resistance to environmental stress cracking.

Can this 10AWG photovoltaic wire handle continuous submersion or heavy rain?

Yes, the complete cable assembly—including the pre-terminated solar connectors—is rated to IP68 waterproof standards. This means it is entirely dust-tight and protected against the effects of continuous immersion in water under pressure. It is specifically engineered to withstand torrential downpours, high-humidity environments, coastal salt-mist, and demanding outdoor conditions without allowing moisture to penetrate the internal copper conductors.

Why is 10AWG wire preferred over higher gauge options for charge controller connections?

The wire gauge (AWG) determines the current-carrying capacity and internal resistance of the cable. A 10AWG wire is significantly thicker than 12AWG or 14AWG alternatives, meaning it offers much lower internal electrical resistance. When connecting solar arrays to a solar charge controller, minimizing resistance is critical to reducing voltage drop and preventing heat buildup ($I^2R$ power loss). This ensures maximum energy transfer efficiency from your solar panels into your power station or battery storage bank.

Does this cable support direct insertion into screw-terminal solar charge controllers?

Yes, we provide flexible termination configurations based on B2B procurement requirements. While the standard version comes with pre-terminated solar connectors on both ends for panel-to-panel or panel-to-extension configurations, we also manufacture custom variants featuring pre-stripped bare ends or cold-pressed lug terminals (O-ring/U-shaped spade). This allows installers to wire the UV Resistant Weatherproof 3 Foot 10AWG Photovoltaic Wire directly into the screw compression terminals of industrial or residential solar charge controllers without needing extra field-crimping tools.
