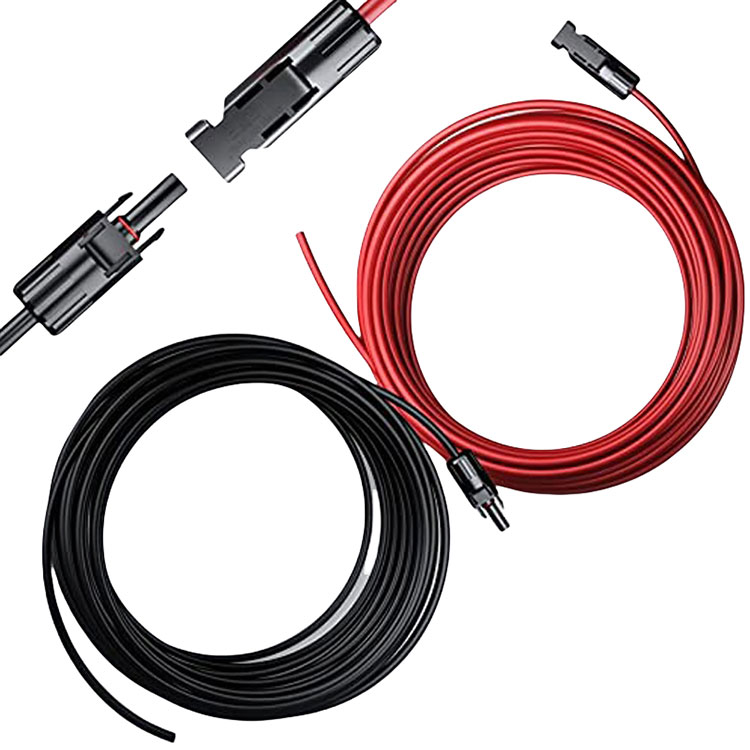

Tinned Oxygen-Free Copper 12AWG Solar Extension Cable

Tinned Oxygen-Free Copper 12AWG Solar Extension Cable Manufacturer Paidu Group Limited., established in 2003, is a professional Supplier of solar photovoltaic wiring solutions for global EPC contractors, distributors, and renewable energy projects requiring stable DC transmission and long service life.

Engineered for Low-Loss Solar Power Transmission

In large-scale photovoltaic systems, voltage drop and thermal loss directly affect ROI. The conductor design of 12AWG Solar Extension Cable ensures stable current flow with minimized resistance, making it suitable for both residential and commercial PV arrays.

- Oxygen-free copper core improves conductivity purity
- Tinned surface layer enhances anti-oxidation performance
- 12AWG structure balances flexibility and current capacity
- Designed for long-distance PV string connections

This combination ensures higher energy efficiency in distributed solar installations and reduces maintenance frequency over system lifespan.

High Conductivity & OFC Tinned Structure Advantage

The use of oxygen-free copper significantly improves electron flow stability under continuous load conditions. Compared with standard copper cables, Paido's structure reduces resistive heating and maintains consistent output.

Paido 12AWG Solar Extension Cable is engineered to perform under fluctuating solar irradiance and high-load environments, ensuring consistent performance in real-world EPC deployments.

Key electrical advantages:

- Lower line resistance for improved system efficiency
- Stable DC transmission up to 1500V systems
- Reduced power loss in long cable runs
- Suitable for high-output solar arrays

Weatherproof Design for Harsh Outdoor Environments

The product is designed for extreme outdoor exposure including desert heat, coastal humidity, and freezing conditions.

Paido Tinned Oxygen-Free Copper 12AWG Solar Extension Cable integrates IP67-rated connectors, ensuring full protection against water ingress and dust contamination in long-term field use.

- Operating temperature: -40°C to 90°C
- UV-resistant outer jacket
- Anti-aging insulation material
- Secure locking MC4-compatible connectors

This structure supports stable operation in rooftop, ground-mounted, and mobile solar applications.

Application Scenarios & Installation Flexibility

The system compatibility of Paido's cable makes it suitable for multiple PV applications:

- Residential rooftop solar systems
- Commercial and utility-scale solar farms
- RV and off-grid energy systems
- Marine and boat solar installations
- Energy storage system connections

The flexibility of the 12AWG Solar Extension Cable allows fast installation without compromising mechanical durability, reducing EPC labor time and installation complexity.

Technical Specification Table

Quality Control & Testing Standards

Paidu Group Limited operates advanced cable testing systems including high-voltage partial discharge detection and insulation performance testing.

Quality assurance includes:

- Partial discharge testing up to 500KV
- DC resistance and conductor integrity testing
- Dielectric loss angle analysis
- Sheath voltage withstand testing

These processes ensure each 12AWG Solar Extension Cable meets strict international PV safety and performance requirements before shipment.

Engineering Comparison vs Standard PV Cable

Compared with conventional PVC-based solar cables, Paido solutions provide:

- Higher thermal stability under continuous load
- Better oxidation resistance due to tinned copper structure
- Improved outdoor lifespan under UV exposure
- Lower long-term maintenance cost

The Tinned Oxygen-Free Copper 12AWG Solar Extension Cable is optimized for EPC contractors requiring stable lifecycle performance and predictable system output.

Installation Efficiency & Connector Design

Paido MC4-compatible waterproof connectors are engineered for fast plug-and-play installation, reducing wiring time on site.

Advantages include:

- Snap-lock structure prevents accidental disconnection
- Dust-proof sealing for rooftop exposure
- Tool-free installation support
- High mechanical pull resistance

The 12AWG Solar Extension Cable ensures stable connection integrity even under vibration conditions such as RV or marine applications.

Packaging & Customization Options

Available length options:

- 20ft / 25ft / 50ft / 100ft

Gauge options:

- 10AWG / 12AWG

Each unit is factory-tested and packaged for export compliance, ensuring safe transport and easy inventory management for distributors.

For EPC contractors and solar distributors seeking stable, low-loss, and weather-resistant PV wiring, the Tinned Oxygen-Free Copper 12AWG Solar Extension Cable delivers a balanced combination of conductivity, durability, and installation efficiency. Its tinned OFC structure ensures long-term reliability in demanding solar environments, supporting stable energy output across diverse global applications.
