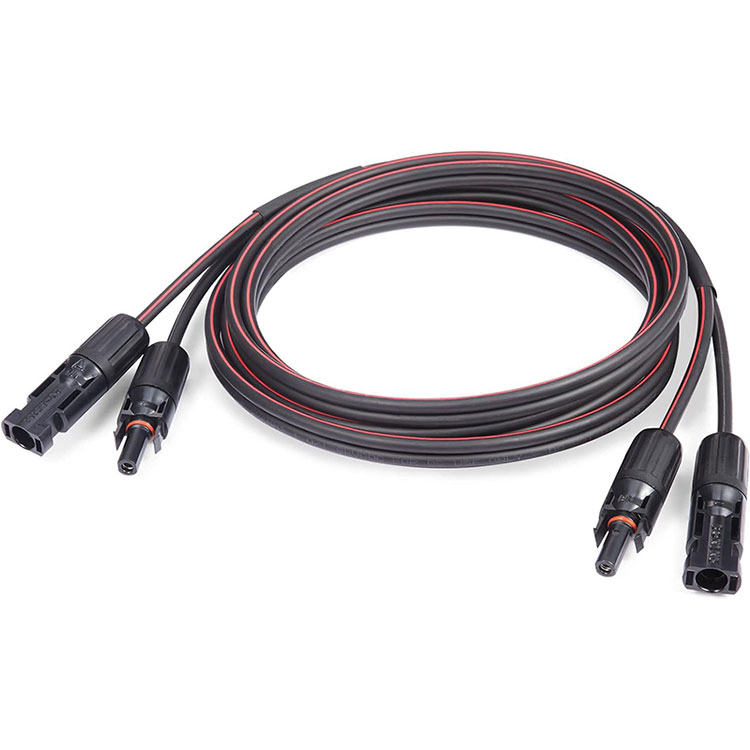

Shrink Wrap Reinforced 10 Gauge Twin Solar Cable 30Ft

What This Cable Solves

The Twin Solar Cable is a complete, ready-to-use solar extension assembly. Unlike bulk cable that requires on-site cutting, stripping, and connector attachment, this pre-assembled unit includes:

• Two parallel 10 AWG conductors (positive and negative) bonded in a twin configuration

• Factory-installed male and female connectors on each end

• Shrink-wrap reinforcement at critical junction points

• Sealed weatherproof construction rated IP68

Primary Use Cases

Technical Specifications

Conductor Construction

The Shrink Wrap Reinforced 10 Gauge Twin Solar Cable 30Ft utilizes 84 strands of tinned copper wire per conductor:

Why 84 strands matter: Higher strand counts provide superior flexibility compared to solid or coarse-stranded cables. This flexibility simplifies routing around roof obstacles, through tight entry points, and within confined RV compartments while maintaining full current-carrying capacity.

Insulation & Jacket Materials

Electrical Ratings

Environmental & Physical Specifications

Connector Specifications

• Connector gender configuration: Male-to-female on each end (allowing extension of multiple cables in series)

• Connector material: PPO (polyphenylene oxide) – selected for dimensional stability across temperature extremes

• Sealing: Weather-tight construction, IP68 rated for water immersion

• Compatibility: Standard PV connector interface for universal compatibility with most solar panels and equipment

Engineering Features That Set This Cable Apart

Shrink Wrap Reinforcement

The defining feature of the Shrink Wrap Reinforced 10 Gauge Twin Solar Cable 30Ft is the shrink-wrapped reinforcement applied to both conductor ends. This reinforcement provides:

• Split prevention: The twin wire configuration receives structural support where cables enter connectors, preventing the individual conductors from splitting apart under heavy handling or pulling forces

• Strain relief: The shrink wrap acts as a stress distribution layer, transferring mechanical load away from the crimped connections

• Environmental sealing: The wrap forms an additional moisture barrier at the cable-to-connector junction

• Visual integrity: Maintains the twin-wire geometry even after repeated installation and removal cycles

Twin Wire Configuration

The 10 AWG twin wires are bonded in a parallel configuration, reducing cable management complexity:

• Single pull: Both conductors are pulled simultaneously during installation

• Reduced clutter: Eliminates separate positive and negative cable runs

• Cleaner installations: Maintains organized cable pathways on roof surfaces

• Simplified identification: Black and red sheaths provide immediate polarity recognition

Tinned Copper Conductors

Each conductor contains 84 strands of high-purity copper with a tin coating. This tin layer provides:

• Corrosion resistance: Prevents copper oxidation that increases resistance over time

• Solderability: Tin surface accepts solder connections if field modifications are required

• Long-term conductivity: Maintains low contact resistance throughout the cable's service life

XLPE Insulation

Cross-linked polyethylene insulation offers superior performance over standard PVC:

• Temperature tolerance: Operates reliably from -40°F to +194°F, accommodating rooftop temperature extremes

• Dielectric strength: XLPE provides higher voltage withstand capability than PVC

• Environmental stress resistance: Resists cracking under thermal cycling and mechanical stress

• Chemical resistance: Withstands exposure to ozone, UV radiation, and common solvents

Installation Time Comparison

Error Reduction Benefits

The Twin Solar Cable 30Ft eliminates common field-installation errors:

• Incorrect stripping length – leading to insufficient contact or exposed conductor

• Incomplete crimping – causing high-resistance connections and heat generation

• Reversed polarity – connecting positive to negative at one end

• Inadequate heat sealing – allowing moisture ingress into connector

• Damage during installation – scored insulation from improper tool use

• Overtightened connections – deforming connector housings

Cost Comparison

Quality Assurance & Manufacturing Background

Testing Capabilities

Paido operates an internationally leading high-voltage partial discharge test hall:

Tests applicable to this product line:

• Partial discharge testing: Detects insulation defects before product shipment

• High-voltage withstand testing: Verifies dielectric integrity

• Conductor DC resistance testing: Validates conductor quality

• Capacitance and dielectric loss measurement: Evaluates insulation performance

Certifications Held

Quality Control Verification

• All products pass inspection by the Bureau of Quality Supervision

• Provincial and municipal quality testing conducted to national standards

• The company's quality control system ensures a safe working environment while maintaining consistent product output

• Production capacity sufficiently meets the needs of both domestic and international customers

• Installation Best Practices

Pre-Installation Checklist

• Verify the Shrink Wrap Reinforced 10 Gauge Twin Solar Cable 30Ft length suits your panel-to-equipment distance

• Confirm connectors match your solar panel and charge controller/inverter connectors

• Inspect the cable for any shipping damage before deployment

• Plan cable routing to minimize exposure to sharp edges and high-footfall areas

Recommended Installation Steps

• Route the cable from solar panel array to the charge controller or inverter location

• Secure the cable using appropriate clips or cable ties every 18-24 inches

• Avoid sharp bends – maintain a bending radius of at least 5× cable diameter

• Allow service loops at both ends for future maintenance access

• Connect the red conductor to positive polarity and black to negative throughout the system

Environmental Protection

• For roof penetrations, use proper weatherproof glands or junction boxes

• In high-UV environments, consider additional conduit protection (though XLPE jacket provides UV resistance)

• For RV applications, secure cable against wind vibration using appropriate fasteners

Compatibility & System Integration

Compatible Equipment

The Twin Solar Cable 30Ft works with:

• Solar panels: 12V and 24V nominal panels with standard connector interfaces

• Charge controllers: PWM and MPPT controllers rated for 10 AWG input

• Inverters: Small-scale off-grid and grid-tie inverters

• Combiner boxes: Accepting twin-wire inputs with connector compatibility

• Battery systems: 12V and 24V battery banks via controller connection

System Sizing Guidance

Frequently Asked Questions (FAQ)

Q1: Why choose it over standard extension cables?

The shrink-wrap reinforcement at both ends is the key differentiator. It prevents the twin conductors from splitting apart under strain, extends cable life, and provides additional strain relief at the connector junction—a point commonly subject to failure in field-assembled cables.

Q2: Is this cable compatible with all solar panel brands?

The connectors follow the industry standard interface used by most major solar panel manufacturers. However, we recommend confirming your panel's connector type before purchase. Adapter cables are available if compatibility mismatches occur.

Q3: What is the maximum amperage this cable can safely carry?

The 10 AWG conductors are rated for 48 Amps maximum current. This capacity exceeds the output of most small-to-medium residential and RV solar arrays, providing a comfortable safety margin.

Q4: Can I connect multiple Shrink Wrap Reinforced 10 Gauge Twin Solar Cable units together?

Yes. The male-to-female connector configuration enables daisy-chaining. However, total voltage drop increases with cable length—consult your system designer for longer runs.

Q5: Is the cable weatherproof for outdoor RV and rooftop use?

Yes. The cable is IP68 rated, meaning it is protected against continuous immersion in water. The XLPE insulation and sealed connectors ensure reliable performance in rain, snow, and high-humidity environments.

Q6: What are the benefits of XLPE insulation over PVC?

XLPE provides higher temperature tolerance (-40°F to 194°F), superior dielectric strength, better environmental stress resistance, and longer service life compared to PVC insulation commonly found in lower-grade cables.

Compliance with US Market Requirements

Important Notice for US Customers

The Shrink Wrap Reinforced 10 Gauge Twin Solar Cable 30Ft is designed with electrical plugs for use in the United States. Please note:

• Outlet and voltage specifications differ internationally

• This product may require an adapter or converter for use outside the US

• Confirm compatibility with your destination's electrical requirements before purchase

Applicable System Types

• 12V DC solar systems (common in RV and marine applications)

• 24V DC residential solar systems

• Systems with 60V maximum DC voltage (within product rating)

Paido Group Limited – Ningbo, China. Manufacturing certified solar cables since 2003. For the Shrink Wrap Reinforced 10 Gauge Twin Solar Cable 30Ft, including bulk pricing, technical data sheets, and sample requests, contact our sales team through the inquiry form.
