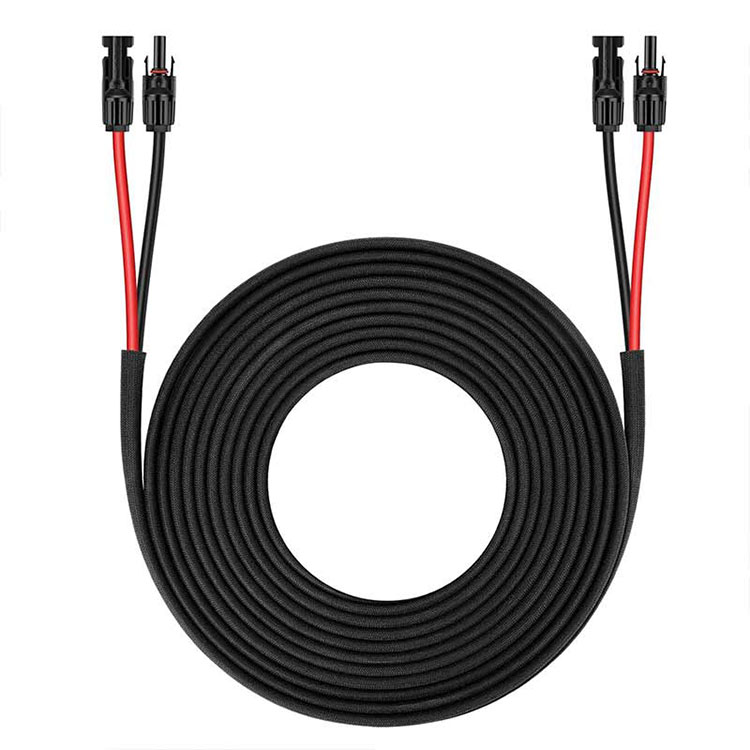

Plug And Play 10AWG Dual Conductor Solar Jumper 25Ft

As an established commercial Supplier, Paido proudly presents the high-performance Plug And Play 10AWG Dual Conductor Solar Jumper 25Ft designed for heavy-duty photovoltaic applications.

Customization Framework and OEM/ODM Services

Understanding that large-scale infrastructure projects have unique architectural requirements, Paido offers professional custom production services for the 10AWG Dual Conductor Solar Jumper 25Ft. Supported by our team of 36 senior engineering experts, wholesale buyers can specify tailored jacket color configurations, specialized terminal brand integrations, custom print layouts on the insulation outer sleeve, or customized unit packaging. Our automated production base operates with high precision to execute custom modifications rapidly while guaranteeing full material validation and safety compliance.

Streamlined Engineering for Commercial Efficiency

In B2B solar procurement, installation velocity and defect mitigation are paramount. The Plug And Play 10AWG Dual Conductor Solar Jumper 25Ft is specifically engineered to address these operational pain points by completely integrating two separate polar lines into a single combined parallel jacket. Traditional systems require field technicians to pull two separate cables, which significantly doubles routing labor hours and introduces the risk of phase misalignment. By utilizing this parallel twin-wire format, field labor is reduced by 50%, while wire management becomes exceptionally neat and systematically structured.

Pre-Terminated Factory Precision

• Integrated Self-Locking Mechanism: Each line is equipped with rugged solar connectors containing a heavy-duty self-locking system. This allows rapid plug-and-play linkage between solar arrays and charge controllers without field crimping tools.

• Machine-Crimped Standardization: Every connection point undergoes rigorous mechanized factory termination to eliminate human error, high contact resistance, and hot-spot failure risks common to field-crimped installations.

• Protective Core Reinforcement: The integrated twin-wire configuration is heavily reinforced with an industrial-grade protective tube at critical stress zones, guarding the assembly against damage during transit and heavy handling.

Technical Specification and Material Standards

The core configuration relies on pure materials engineered to exact tolerances. The internal conductor contains 78 strands of 0.295mm tinned copper wire rather than cheaper aluminum alternatives. Tinned copper provides excellent anti-corrosion protection against oxidation while maintaining high material flexibility for tighter routing curves. Copper also features much lower internal resistance and higher electrical conductivity, mitigating energy dissipation over the 25-foot span.

Advanced Insulation and Outer Jacket Performance

The specialized outer jacket is composed of premium PVC material developed specifically for cross-market compliance and multi-year environmental exposure. This heavy-duty compound shields internal conductors from mechanical wear, impact, and chemical corrosion. It possesses high mechanical fatigue resistance and high structural strength, maintaining its physical properties even when exposed to continuous thermal fluctuations. Furthermore, its inherent flame-retardant formulation minimizes fire hazards in dense arrays.

Environmental Endurance and Voltage Rating

• Broad Temperature Spectrum: Validated to withstand extreme operational temperatures ranging from -40°F up to 248°F (-40°C to 120°C), making it suitable for arctic field arrays or high-heat desert rooftop systems.

• High Voltage Capabilities: Designed for commercial-scale deployment with a rated operational voltage capacity up to 1500V DC, ensuring compliance with modern high-voltage inverter topologies.

• Weatherproof Shielding: Highly resilient against UV radiation, direct moisture penetration, and severe weather wear, preventing premature insulation breakdown or dielectric failures.

Cross-Industry Application and Compatibility

The physical layout ensures seamless integration across low-voltage DC infrastructure. While primarily engineered for direct link-up between photovoltaic solar panel segments and solar charge controllers, its robust dual-conductor architecture makes it ideal for DC circuits in automotive, marine vessels, off-grid cabins, heavy utility trailers, and external LED inverter setups. This multi-application versatility makes the Plug And Play 10AWG Dual Conductor Solar Jumper 25Ft a high-turnover inventory staple for industrial distributors and engineering procurement officers worldwide.

Advanced Partial Discharge Test Laboratory

To eliminate any possibility of field insulation failure, our plant has integrated an internationally leading high-voltage local partial discharge test shielding hall. Measuring 33 meters long, 30 meters wide, and 23 meters high, this steel-structured facility provides a shielding effect greater than 120dB with a total system grounding resistance below 10 ohms. Every power supply entering the shielding room is thoroughly filtered to remove external electrical noise. This extreme level of isolation allows our quality team to perform highly sensitive partial discharge and withstand-voltage assessments up to 500KV, successfully identifying any microscopic insulation defects or material voids prior to factory dispatch.

Rigorous Factory Compliance Testing

• High-Voltage Measuring Bridge: Utilized to accurately determine dielectric loss angle tangent and absolute capacitance values across cross-linked cable batches.

• DC High-Voltage Generators: Employed to perform rigorous voltage withstand tests on external protective sheaths to ensure complete environmental sealing.

• Precision DC Resistance Testers: Regular monitoring of conductor DC resistance to verify copper purity, strand count consistency, and optimum conductivity benchmarks.

• Global Regulatory Certifications: Our production facility operates in strict adherence to international standards, holding valid ISO9001:9002 quality management certification, CCC national mandatory certification, CE approval, and TUV certification.

Every commercial delivery of the Plug And Play 10AWG Dual Conductor Solar Jumper 25Ft comes backed by verifiable test logging, ensuring unmatched field longevity, maximum system uptime, and absolute safety for large-scale B2B solar projects.
