What Materials Are Commonly Used in Solar Cable Insulation?

For effective and secure energy transfer, solar power systems depend on premium cables. Insulation is one of the most important parts of solar cables because it shields the internal conductors from the elements, including heat, moisture, and UV light. For long-term solar systems, the proper insulating material is crucial since it improves performance, safety, and longevity.

Key Requirements for Solar Cable Insulation

Solar cables operate in harsh outdoor conditions, requiring insulation materials that offer excellent weather resistance, thermal stability, and electrical insulation properties. These materials must withstand extreme temperatures, resist UV degradation, and prevent damage from moisture, chemicals, and mechanical stress.

Commonly Used Insulation Materials

Cross-Linked Polyethylene (XLPE)

XLPE is widely used for solar cable insulation due to its excellent thermal and electrical properties. It can handle high temperatures without melting or deforming, making it ideal for solar power applications. XLPE insulation also offers superior resistance to chemicals and moisture, ensuring long-term durability in outdoor environments.

Polyvinyl Chloride (PVC)

PVC is another common insulation material used in solar cables. It provides good electrical insulation, flexibility, and resistance to moisture and chemicals. However, compared to XLPE, PVC has lower thermal resistance and may degrade faster under prolonged UV exposure, making it less suitable for extreme outdoor conditions.

Ethylene Propylene Rubber (EPR)

EPR is a rubber-based insulation material known for its high flexibility and resistance to heat, UV radiation, and ozone. It is commonly used in solar cables that require superior durability in outdoor installations. EPR also maintains its insulation properties in extreme temperature conditions, making it a reliable choice for solar power applications.

Thermoplastic Elastomers (TPE)

TPE is a blend of rubber and plastic that offers both flexibility and durability. It is resistant to UV exposure, moisture, and temperature variations, making it suitable for solar cables in harsh environments. TPE insulation also provides excellent mechanical strength, reducing the risk of cable damage during installation and use.

Silicone Rubber

Silicone rubber is often used for high-temperature applications due to its outstanding heat resistance and flexibility. It can withstand extreme cold and hot conditions without losing its insulating properties. Additionally, silicone rubber provides good UV and weather resistance, making it suitable for solar cables exposed to direct sunlight and outdoor elements.

Selecting Appropriate Solar Cable Insulation

Environmental conditions, cable flexibility needs, and longevity expectations all play a role in the choice of insulating material. Because of their higher heat and UV resistance, XLPE and EPR are frequently chosen for high-performance solar arrays. TPE or silicone rubber can be the ideal option for situations that call for flexibility. Even while PVC is still reasonably priced, its application is frequently restricted to less demanding settings.

For solar power systems to be effective, safe, and long-lasting, the insulation material of a solar cable is essential. Solar installations can resist severe weather conditions and continue to transmit electricity steadily by selecting the appropriate insulating material. Each material has special advantages suited to particular solar power applications, such as silicone rubber for harsh weather conditions, EPR for flexibility, or XLPE for heat resistance.

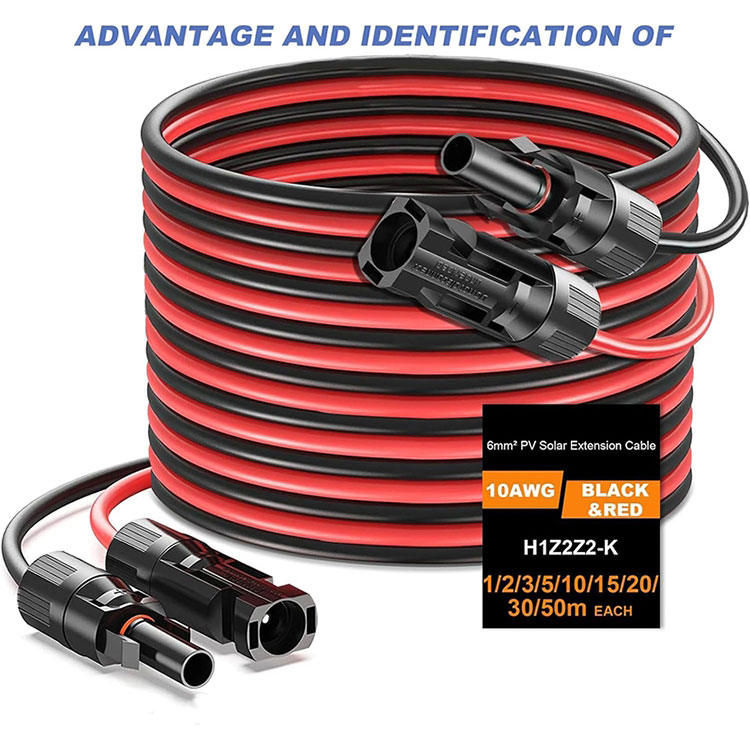

As the professional manufacturer, we would like to provide you high quality Paidu Solar Cable. Solar cables, also known as photovoltaic (PV) cables or solar PV cables, are specialized cables designed for use in solar power systems to connect solar panels, inverters, charge controllers, and other components.Visit our website at www.electricwire.net to learn more about our products. For inquiries, you can reach us at vip@paidugroup.com.
