What Materials Are Commonly Used in Solar Cable Insulation?

Solar cables play a crucial role in ensuring the safe and efficient transmission of electricity from solar panels to inverters and distribution systems. One of the key aspects of solar cables is their insulation, which protects against environmental factors, mechanical stress, and electrical faults. The choice of insulation material significantly impacts the durability, performance, and lifespan of solar cables. Below are the most commonly used materials in solar cable insulation.

1. Cross-Linked Polyethylene (XLPE)

XLPE is a widely used insulation material in solar cables due to its excellent thermal and electrical properties. Key benefits include:

- High temperature resistance (up to 125°C operating temperature)

- Superior electrical insulation properties

- Enhanced mechanical strength

- Resistance to UV radiation and weather conditions

- Low smoke and halogen-free characteristics

2. Polyvinyl Chloride (PVC)

PVC is a cost-effective and versatile insulation material used in various electrical applications, including solar cables. Key features include:

- Affordable and easy to process

- Good flame retardancy

- Resistant to moisture and chemicals

- Moderate UV and weather resistance (not as high as XLPE)

- Temperature tolerance up to 70-90°C

3. Ethylene Propylene Rubber (EPR)

EPR is known for its flexibility and excellent thermal properties, making it suitable for demanding solar applications. Its advantages include:

- High dielectric strength for electrical insulation

- Resistant to extreme temperatures and weather conditions

- Better flexibility than XLPE, aiding in installation

- Good resistance to ozone and UV radiation

4. Thermoplastic Elastomer (TPE)

TPE is a relatively new insulation material offering a balance between flexibility and durability. Notable benefits include:

- Highly flexible, making it easy to install

- Good resistance to chemicals and oils

- Moderate UV and weather resistance

- Environmentally friendly and recyclable

5. Silicone Rubber

Silicone rubber insulation is used in high-performance solar cables where extreme environmental conditions are a concern. It provides:

- Exceptional temperature resistance (-60°C to 200°C)

- High flexibility even in cold weather

- Excellent UV and ozone resistance

- Superior aging resistance

Choosing the Right Insulation Material

When selecting insulation for solar cables, factors such as environmental exposure, mechanical stress, temperature range, and cost must be considered. XLPE is often the preferred choice for high-performance solar cables, while PVC and TPE provide budget-friendly options for less demanding conditions.

Conclusion

The insulation material of a solar cable directly affects its longevity, safety, and efficiency. By choosing the right insulation, solar systems can operate reliably, reducing maintenance costs and ensuring optimal energy transmission. Whether it's XLPE, PVC, EPR, TPE, or silicone rubber, each material offers unique benefits suited for specific solar energy applications.

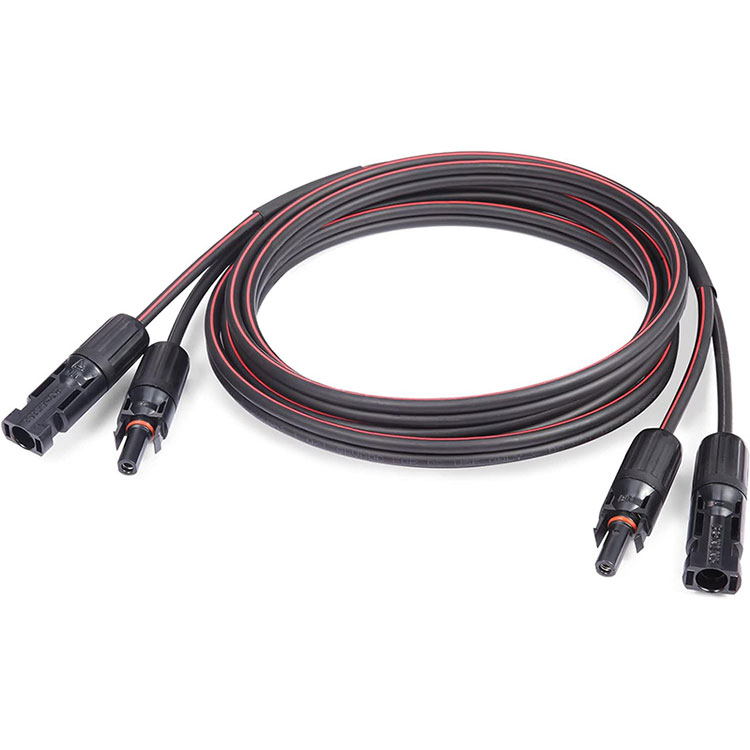

As the professional manufacturer, we would like to provide you high quality Paidu Solar Cable. Solar cables, also known as photovoltaic (PV) cables or solar PV cables, are specialized cables designed for use in solar power systems to connect solar panels, inverters, charge controllers, and other components.Visit our website at www.electricwire.net to learn more about our products. For inquiries, you can reach us at vip@paidugroup.com.
