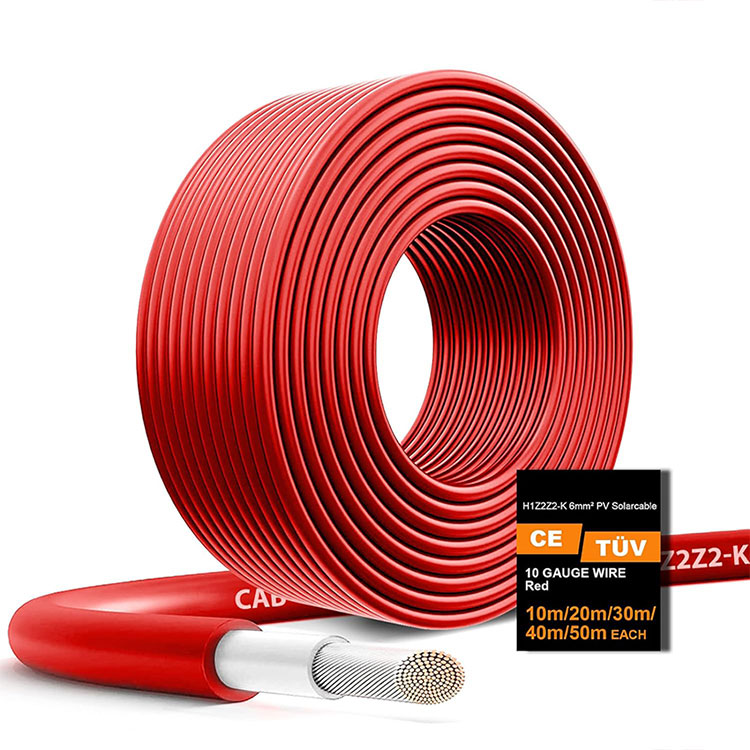

Low Conductor Resistance 10AWG Photovoltaic Wire 65FT

As a supplier, Paido introduces the Low Conductor Resistance 10AWG Photovoltaic Wire 65FT, engineered specifically to eliminate power line losses and withstand extreme environmental degradation in B2B utility-scale and off-grid solar deployments.

Eliminating the Core Pain Point of Long-Distance Solar Power Loss

In large-scale solar array installations, the distance between the photovoltaic modules and the charge controllers or central inverters often spans substantial lengths. Procurement professionals frequently face the hidden cost of high line resistance found in substandard solar cables. Using inferior Copper-Clad Aluminum (CCA) wires or low-purity copper alternatives over a 65-foot length generates high internal resistance, leading to massive heat generation (I²R loss) and noticeable voltage drops.

The 10AWG Photovoltaic Wire 65FT addresses this directly by optimizing the internal conductor architecture to achieve an ultra-low DC conductor resistance of ≤5.09Ω/KM at 20°C. Compared to generic market options, this lower resistance translates to an direct improvement in energy capture efficiency. Over long-run operations, this difference prevents valuable kilowatt-hours from dissipating as waste heat, directly lowering the project payback period and boosting the return on investment (ROI) for project engineering firms.

Advanced Multi-Strand Tinned Copper Core Engineering

The exceptional electrical transmission efficiency of our 10 gauge solar wiring relies on its high-purity metallurgical configuration and precise internal geometry:

• 84-Strand Precision Construction: Each individual 10AWG cable core comprises exactly 84 strands of 0.295mm high-purity copper wires. This multi-strand layout maximizes surface area conductivity while retaining superior mechanical flexibility for easy routing through conduits and complex bends.

• Premium Anti-Oxidative Tin Coating: Untreated raw copper oxidizes rapidly when exposed to ambient moisture, oxygen, and soil chemistry, building a layer of copper oxide that elevates circuit resistance over time. Our precise tin-plating process creates a barrier around each strand. This prevents oxidation, protects against chemical corrosion, and ensures the cable maintains its low conductor resistance over its full 25-year service life.

• High Current Capacity Capability: Formulated to safely handle a continuous rated current of up to 57A and an operating test voltage of 6500V (Rated DC 1500V), preventing bottleneck risks within modern high-power PV panels.

Comprehensive Technical Specifications and Standards

The engineering properties of the Low Conductor Resistance 10AWG Photovoltaic Wire 65FT strictly align with global TUV technical standards for industrial and commercial photovoltaic power applications.

Why Does Factory-Direct Testing Matter for B2B Procurement?

Advanced High-Voltage Shielding and Diagnostics

Paido operates from an expansive 18,000 square meter standardized industrial plant in Cixi Industrial Zone, Zhejiang Province, backed by an annual production capacity of 1.2 billion yuan. Unlike standard trade merchants who source through third-party wholesalers, Paido tests every production run inside our specialized high-voltage local discharge test shielding hall.

Measuring 33m long, 30m wide, and 23m high with an advanced steel structure, this facility achieves a shielding effect greater than 120dB and a grounding resistance under 10Ω. Utilizing high-voltage bridges for capacitance, dielectric loss angle tangent metrology, and dedicated high-precision DC resistance testers, our factory ensures that the Low Conductor Resistance 10AWG Photovoltaic Wire 65FT arrives with zero hidden insulation voids, micro-fractures, or structural impurities. This rigorous diagnostic process underpins our compliance with ISO9001:9002 quality systems, CCC mandatory certification, CE markers, and official TUV standards.

Rugged Insulation Architecture for Direct Burial Deployment

The external insulation layer of our solar wire utilizes cross-linked polyolefin (XLPO/XLPE) materials designed to withstand underground and exposed roof environments:

• Direct Burial Rating: The chemical stability of the XLPO outer layer resists ground acids, alkaline soils, and moisture penetration, allowing safe, direct underground burial without needing protective PVC conduit piping.

• Extreme Thermal Resilience: Engineered to function flawlessly within an ambient temperature range from -40°C up to 90°C, preventing cracking during sub-zero winters or melting under intense summer roof heat.

• Flame-Retardant Circuit Safety: Features a built-in fire-resistant and flame-retardant formulation that eliminates electrical fire propagation, providing vital shock protection and physical safety for the entire system array.

Multi-Industry Application Compatibility

The heavy-duty, ultra-low resistance properties of our 10AWG Photovoltaic Wire 65FT make it a highly versatile solution for a wide range of DC power configurations. It can be easily cut and soldered to fulfill various B2B application demands:

• Commercial Photovoltaic Arrays: Connecting high-wattage commercial solar panels to central solar charge controllers.

• Mobile Transportation Infrastructure: Heavy-duty DC wiring inside marine vessels, ships, automobiles, commercial trailers, and luxury RV power systems.

• Industrial Inverter Integration: Connecting high-amperage battery banks to power inverters, low-voltage LED networks, and heavy mining machinery electrical systems.

What Strategic Commercial Edge Does Paido Provide?

Streamlined B2B Sales and Customization Services

As a dedicated manufacturing group with over 200 employees—including 36 senior professional and technical personnel—Paido delivers comprehensive factory-to-business support that removes intermediate commercial markups. We provide customizable solar cable options, allowing international buyers to specify customized lengths, unique jacket color configurations, specialized multi-strand densities, or custom end-terminations like cold-pressed O-ring or spade terminals.

Our ample production capacity guarantees consistent supply lines and rapid dispatch times for global EPC contractors, overseas distributors, and solar system integrators looking for reliable volume shipments.

Driving Project Profitability Through Reduced Maintenance

Opting for the Low Conductor Resistance 10AWG Photovoltaic Wire 65FT prevents premature system failures and localized grid degradation. Its IP68 waterproof rating ensures completely moisture-sealed performance during heavy rains, high winds, and winter snowstorms, maintaining peak electrical continuity across a 25-year lifespan. By reducing ongoing field maintenance expenses, eliminating regular wiring replacements, and maximizing solar generation efficiency, Paido helps engineering firms lower operational risks while delivering higher long-term value to their clients.
