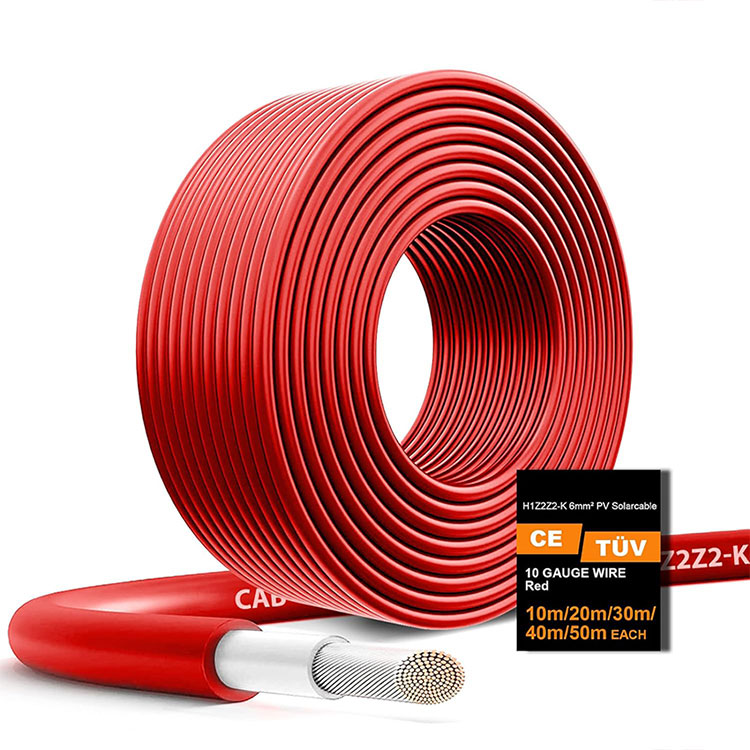

Heavy Duty Earth Burial Approved 6mm2 Red Solar Line

Paido, as an authoritative global Supplier and Manufacturer of international certified wires, presents the Heavy Duty Earth Burial Approved 6mm2 Red Solar Line—a highly specialized, sub-surface photovoltaic solution complying fully with European H1Z2Z2-K industrial standards.

The Subterranean Hazard: Why Conventional PV Wires Fail Underground

When EPC contractors and industrial solar procurement managers route power lines underground, they enter an environment far more destructive than open-air exposure. Standard solar wires rely on linear polymer jackets that easily yield to continuous underground moisture, soil shifting, microbial attacks, and chemical alkalinity. Over a short period, this environmental stress leads to insulation breach, micro-fissures, and catastrophic grounding faults.

The Red Solar Line is specifically formulated to mitigate these underground risks. Utilizing an advanced electron-beam cross-linked polyolefin (XLPO) jacket, the molecular structure is modified into a dense three-dimensional web. This robust engineering provides high mechanical crush resistance, enabling the cable to be buried directly into trenches without the added expense and labor of PVC protective conduits.

Advanced Multi-Strand Metallurgy and Anti-Oxidative Integrity

Sub-surface moisture often accelerates copper corrosion, which gradually raises conductor resistance, degrades system efficiency, and creates fire hazards. Our wire layout relies on a high-spec physical architecture to secure low resistance across its entire lifespan:

• 84-Strand Dense Configuration: The 6mm² core consists of exactly 84 strands of 0.295mm high-purity copper, balancing flexible handling in tight trenches with robust current conductivity.

• Pure Tin Coating Shield: Each copper strand is individually electro-tinned. This tin barrier stops copper oxidation caused by subterranean moisture and atmospheric oxygen, keeping the line resistance stable for decades.

• Optimized Electrical Throughput: Achieving a critical DC conductor resistance of ≤5.09Ω/KM at 20°C, it safely accommodates a continuous rated current of 57A and a rated voltage of DC 1500V, ensuring that power loss across long underground runs is minimized.

Standardized Engineering Parameters and Structural Data

Every reel of our Heavy Duty Earth Burial Approved 6mm2 Red Solar Line is manufactured to precise tolerances, meeting standard global testing requirements for engineering projects.

Industrial Testing Rigor in Our 18,000㎡ Manufacturing Base

Paido produces all photovoltaic lines within an 18,000 square meter standardized plant in Cixi Industrial Zone, Zhejiang, maintaining an annual capacity of 1.2 billion yuan. To back our quality guarantees for high-volume B2B orders, every batch undergoes extensive factory testing:

• Partial Discharge Diagnostics Hall: We test insulation reliability inside a specialized 33m x 30m x 23m steel shielding enclosure. Featuring a shielding effect over 120dB and grounding resistance under 10Ω, this facility screens out any cables with internal micro-voids or impurities.

• Precision Metrology Verification: Using high-voltage bridges for capacitance measurement and dedicated DC resistance testers, our 36 senior technical personnel verify that every foot of wire matches its stated resistance profile.

• Certified System Operations: Our factory operates under audited ISO9001:9002 quality standards, ensuring full traceability and regulatory compliance for international import markets.

What Structural Advantages Protect This Solar Line Against Harsh Environments?

IP68 Grade Complete Moisture Isolation

Buried lines often sit in water-logged soil due to heavy rain, high water tables, or poor drainage. Our wire and its connectors carry a true IP68 ingress protection rating. This complete seal prevents water molecules from wicking into the conductor core, stopping internal corrosion and keeping connection resistance low in coastal wetlands or rain-heavy regions.

Cross-Linked Thermal Stability

Exposed portions of solar cabling on roofs or ground-mount frames face intense heat and freezing cold. The cross-linked polymer insulation on our Heavy Duty Earth Burial Approved 6mm2 Red Solar Line stays stable from -40°C to 90°C. It will not melt or deform during scorching summer days, nor will it turn brittle and crack during sub-zero winter freezes, preserving its insulating value for over 25 years.

Flame-Retardant Safety Protocols

System safety is a top priority for commercial and industrial solar installations. Our XLPO insulation compound includes self-extinguishing, flame-retardant additives. In the event of an external surge or electrical arc, the cable jacket will not propagate flame, protecting surrounding equipment and helping project installations comply with strict civil fire safety codes.

How Does Low Conductor Resistance Improve Project Economics?

For distributors and solar EPC engineers, wire selection directly impacts long-term system profitability. Lower-quality wires with higher resistance parameters turn generated energy into waste heat ($I^2R$ loss), creating a permanent power drain over the lifetime of the array.

By utilizing the Paido Heavy Duty Earth Burial Approved 6mm2 Red Solar Line, projects benefit from an ultra-low resistance of ≤5.09Ω/KM. Lower line loss means more kilowatt-hours reach the inverter, maximizing total system yield. This reliable power delivery helps project developers hit their performance targets, cuts down on maintenance and replacement costs, and ensures a faster, predictable return on investment.
