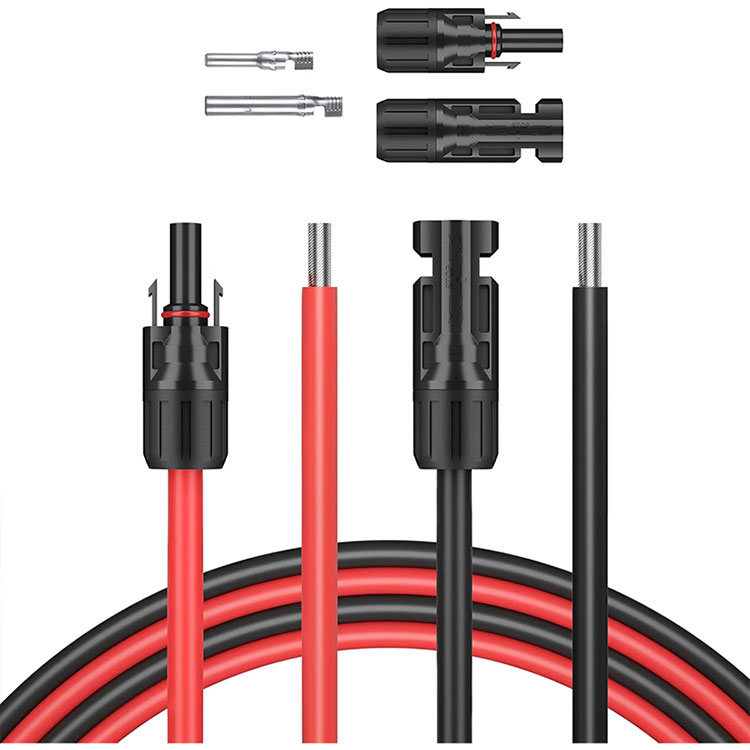

5 Feet 10AWG Solar Wire One End Bare One End Connector

Paido 5 Feet 10AWG Solar Wire One End Bare One End Connector  Manufacturer provides professional-grade photovoltaic connection solutions for RV, home, boat, and off-grid energy systems, engineered under the strict manufacturing capability of Paidu Group Limited, a certified cable producer with ISO, CCC, CE, and TUV compliance.

This model is designed as a practical bridge cable between solar panels and downstream electrical units such as charge controllers, inverters, and combiner boxes. It focuses on installation flexibility: one end comes pre-installed with a solar connector, while the other end remains bare for customized termination on-site.

The 5 Feet 10AWG Solar Wire is built for installers who need speed on one side and customization on the other side without compromising conductivity or safety.

Engineering Focus: Bare End & Connection Precision

The most critical design advantage lies in the bare copper end treatment:

- Factory precision stripping ensures clean conductor exposure
- Bare end uses 105-strand tinned copper core (anti-oxidation, anti-corrosion)
- No pre-crimped limitation → allows:
- Direct terminal crimping (ring terminal, ferrule, MC4 rework)
- Custom combiner box wiring
- Direct controller input connection

This structure avoids unnecessary adapters, reducing resistance points and improving system efficiency.

The connector end is fully compatible with mainstream PV connector ecosystems, ensuring plug-and-play installation on solar panels.

Core Material Structure

- Conductor: 105 strands tinned red copper
- Gauge: 10AWG (6mm²)
- Insulation: High-density cross-linked polymer
- Jacket: UV-resistant, flame-retardant, weatherproof sheath
- Temperature range: -40°C to +221°F

The tinned copper structure improves oxidation resistance in outdoor environments, especially in humid, coastal, or high-UV regions.

Why This Cable Reduces System Cost

Compared with traditional solar extension wiring, the 5 Feet 10AWG Solar Wire One End Bare One End Connector reduces installation cost in three ways:

- Eliminates additional connector purchase on one end
- Reduces labor time for pre-termination
- Minimizes signal loss by reducing intermediate joints

This makes it especially suitable for EPC contractors and small-to-medium solar installers aiming to optimize BOS (Balance of System) cost.

Technical Specification Table

Installation Direction (Panel to System Connection)

The 5 Feet 10AWG Solar Wire is engineered for:

- Solar panel → charge controller connection
- Solar panel → combiner box wiring
- Solar panel → inverter DC input bridging

Installation steps:

- Connect the pre-installed connector end to solar panel output port
- Route cable to controller or junction box
- Use bare end for:
- Ferrule crimping
- Ring terminal installation
- Direct screw terminal fixation

This hybrid structure eliminates unnecessary connector dependency and improves field adaptability.

Weather Resistance & Long-Term Stability

Designed for outdoor photovoltaic systems, the cable provides:

- IP67 waterproof sealing for long-term outdoor exposure
- UV-resistant insulation to prevent cracking under sunlight
- Stable performance under extreme climates (-40°C cold / +221°F heat)
- Long design life up to ~30 years under standard PV installation conditions

This makes the 5 Feet 10AWG Solar Wire One End Bare One End Connector suitable for harsh environments such as desert, coastal, and high-altitude solar farms.

Electrical Performance Advantages

Key performance benefits:

- Low resistance transmission via high-purity copper strands
- Reduced voltage drop over short-to-medium distance PV wiring
- Stable current delivery for small to medium solar arrays
- Better thermal dissipation compared to aluminum-core alternatives

These properties help maintain inverter efficiency and reduce long-term energy loss.

Factory Strength & Quality Assurance

Manufactured under Paidu Group Limited, the product benefits from:

- 18,000 m² production base
- 30+ advanced production lines
- Full cable testing laboratory (high-voltage & insulation testing)
- Partial discharge test system for insulation defect detection
- CCC / CE / ISO9001 / TUV certification system

Quality testing includes:

- DC resistance test for conductor integrity
- High-voltage withstand test for insulation reliability
- Capacitance & dielectric loss angle testing
- Sheath insulation performance verification

Each 5 Feet 10AWG Solar Wire One End Bare One End Connector is factory-tested before shipment to ensure electrical safety and consistency.

After-Sales & Warranty Commitment

- 18-month product warranty
- Lifetime technical support
- 24-hour response for technical or quality issues
- Replacement support for verified defects

This ensures buyers can confidently deploy the 5 Feet 10AWG Solar Wire in both residential and commercial solar systems.

Application Scenarios

- Residential rooftop PV systems
- RV solar installations
- Marine/boat solar setups
- Portable off-grid power stations
- Small commercial solar arrays

Its hybrid design (connector + bare end) provides maximum flexibility for installers working in mixed-system environments.

The 5 Feet 10AWG Solar Wire One End Bare One End Connector combines high-conductivity tinned copper, flexible termination design, and industrial-grade insulation to deliver a cost-efficient and installer-friendly PV wiring solution. Backed by strong manufacturing capability and strict testing systems, it is engineered for stable long-term photovoltaic performance across diverse environments.
